ASTM A790 Duplex Stainless Steel Tube UNS S32205 S31803 Seamless Tube

Name: ASTM A790 Duplex Stainless Steel Tube UNS S32205 S31803 Seamless Tube
Brand: MITTEL
Price: 5.5 USD

ASTM A790 Duplex Stainless Steel Tube UNS S32205 S31803 Seamless Tube Manufactures

Brand Name : MITTEL

Model Number : 2205

Certification : SGS ISO MTC

Place of Origin : China

MOQ : 100KGS

Price : 5.5 USD/KG

Payment Terms : L/C, Western Union, T/T

Supply Ability : 5000KGS

Delivery Time : 14Days

Packaging Details : Export Packing

OD : 6-426mm

Length : 6000mm

Surface : NO.1

Type : Seamless and Welded

Condition : Cold Rolled

Grade : S32205 S31803 2205

Contact Now

General Duplex stainless steel information

2205 is the most widely used duplex (ferritic/austenitic) stainless steel grade. It finds applications due to both excellent corrosion resistance and high strength. The standard duplex S31803 composition has over the years been refined by many steel suppliers, and the resulting restricted composition range was endorsed as UNS S32205 in 1996. Duplex S32205 gives better guaranteed corrosion resistance, but for much of the Duplex S31803 currently produced also complies with Duplex S32205.2205 is not generally suitable for use at temperatures above 300º C as it suffers from precipitation of brittle micro-constituents, nor below -50º C because of its ductile-to-brittle-transition.

Duplex Applications

Chemical processing, transport and storage,
Oil and Gas exploration and processing equipment,
Marine and other high chloride environments,
Pulp and paper digesters, liquor tanks and paper machines.

Duplex Corrosion Resistance

Excellent general corrosion resistance; Superior to Grade 316 in most environments. Excellent resistance to localized corrosion including intergranular, pitting and crevice corrosion; The CPT of 2205 is generally at least 35º C. The grade is also resistant to chloride stress corrosion cracking (SCC) at temperatures of up to about 150º C. Grade 2205 will often perform well in environments which cause premature failure of austenitic grades. It has better resistance to sea water then Grade 316.

Duplex Heat Resistance

Although 2205 has good high temperature oxidation resistance, this grade - like other duplex stainless steels - suffers from embrittlement if held for even short times at temperatures above 300º C. If embrittled, this can only be rectified by a full solution annealing treatment. Duplex stainless steels are almost never used above 300º C.

Duplex Heat Treatment

Solution treatment (annealing) - heat to 1020º C-1100º C and cool rapidly. This grade cannot be hardened by thermal treatment, but does work harden.

Trade Name	UNS	Duplex Stainless Steel Industry Specifications	Chemical Composition	Min.Tensile (KSI)	Min.Yield (KSI)	Elongation %
SAF 2205® 22Cr	UNS S31803	ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815 ASTM A182 (F51),A240, A276, A479, A789, A790, A815, A928, A988 SAE J405	C 0.30 max Cr 21.0-23.0 Mn 2.00 max Mo 2.50-3.50 N 0.08-0.20 Ni 4.50-6.50 P 0.030 max S 0.020 max Si 1.00 max	90	65	25
SAF 2205® 22Cr	UNS S32205	ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815 ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988

OD, inch	OD Tolerance inch(mm)	WT Tolerance %	Length Tolernace inch(mm)
OD, inch	OD Tolerance inch(mm)	WT Tolerance %	+	-
≤ 1 / 2	± 0.005 ( 0.13 )	± 15	1 / 8 ( 3.2 )	0
> 1 / 2 ~1 1 / 2	± 0.005(0.13)	± 10	1 / 8 (3.2)	0
> 1 1 / 2 ~< 3 1 / 2	± 0.010(0.25)	± 10	3 / 16 (4.8)	0
> 3 1 / 2 ~< 5 1 / 2	± 0.015(0.38)	± 10	3 / 16 (4.8)	0
> 5 1 / 2 ~< 8	± 0.030(0.76)	± 10	3 / 16 (4.8)	0
8~< 12	± 0.040(1.01)	± 10	3 / 16 (4.8)	0
12~< 14	± 0.050(1.26)	± 10	3 / 16 (4.8)	0

ASTM A790 Duplex Stainless Steel Tube UNS S32205 S31803 Seamless Tube

Product Tags:

ss seamless pipes

astm stainless steel pipe

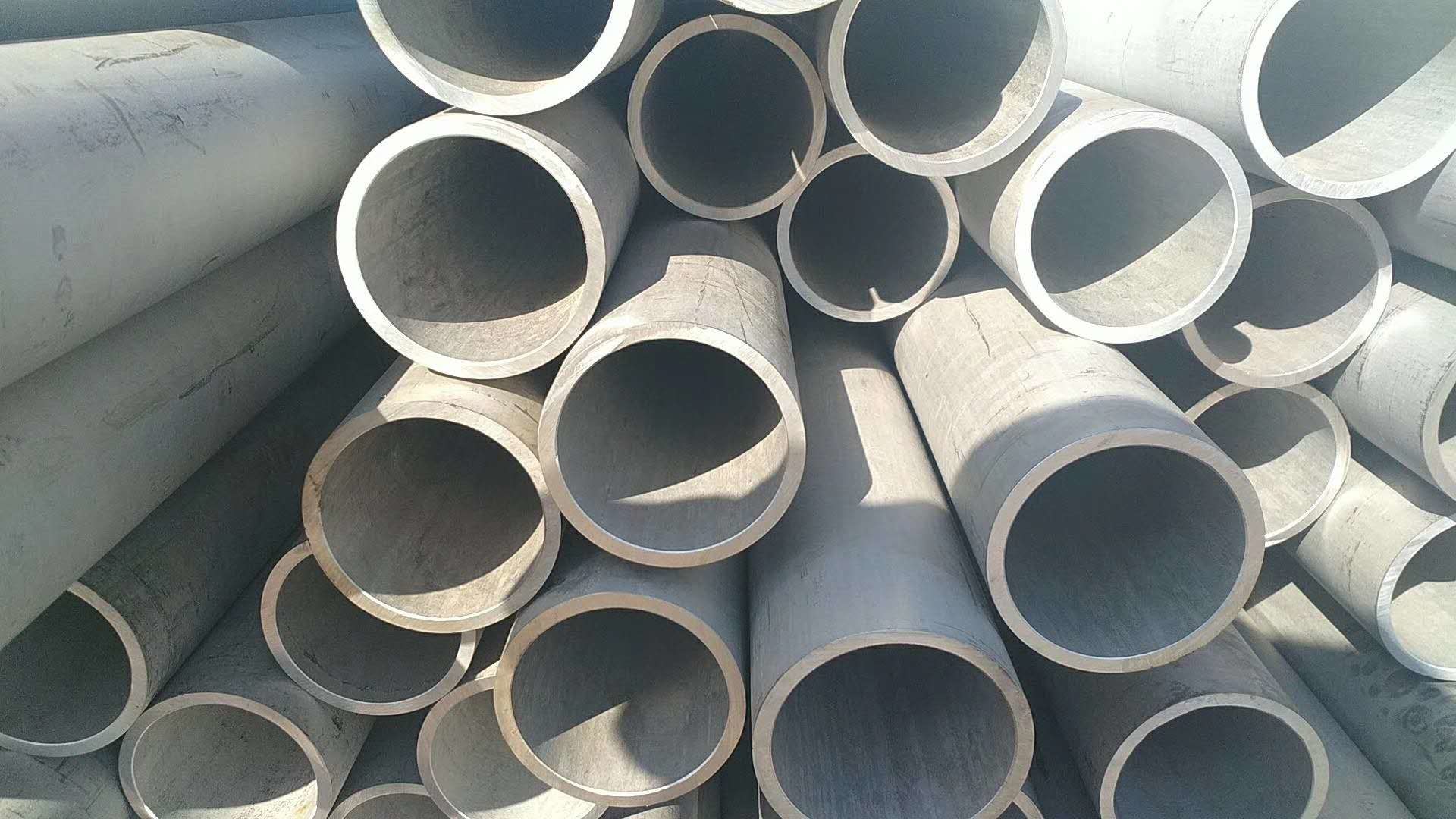

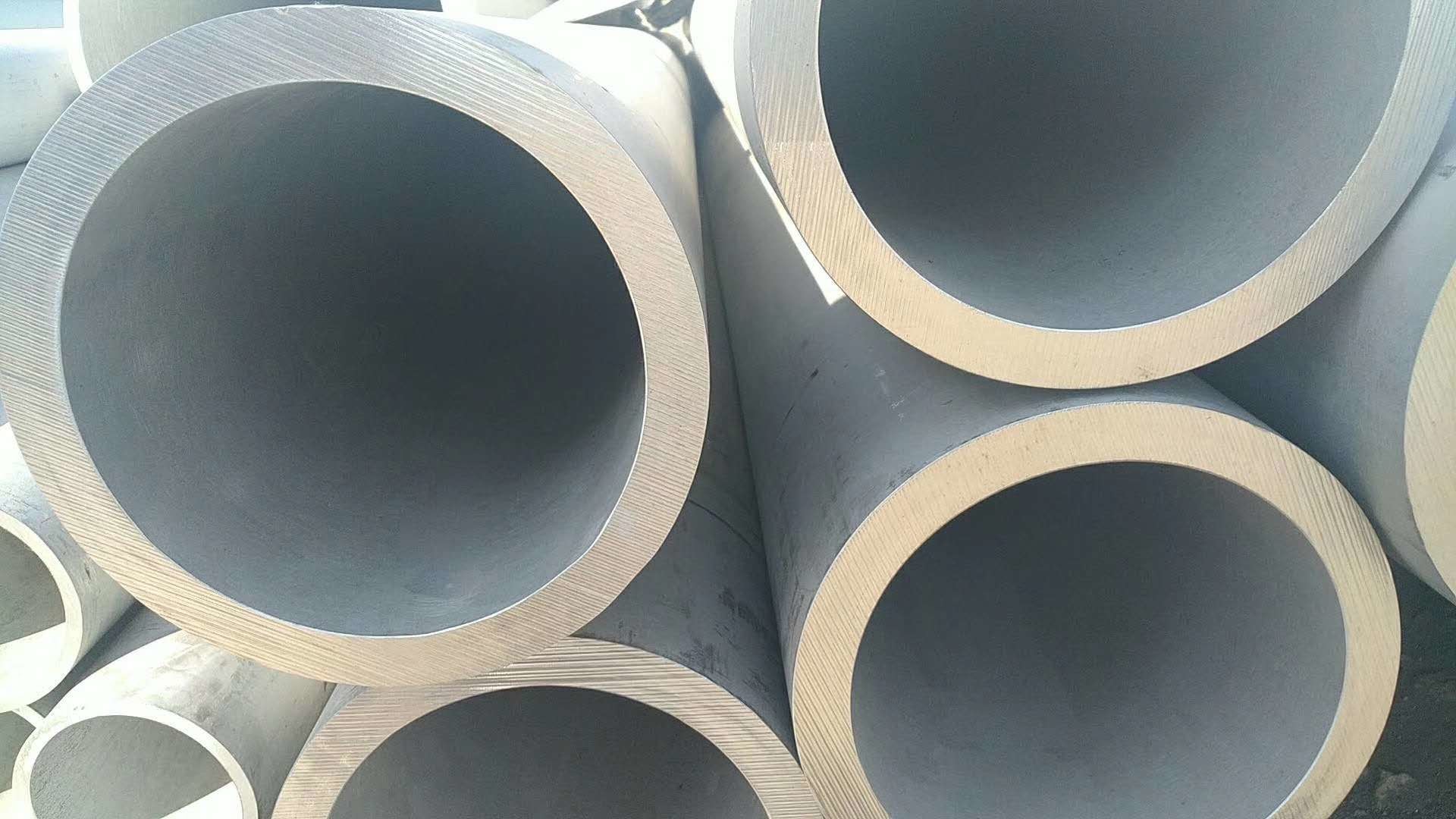

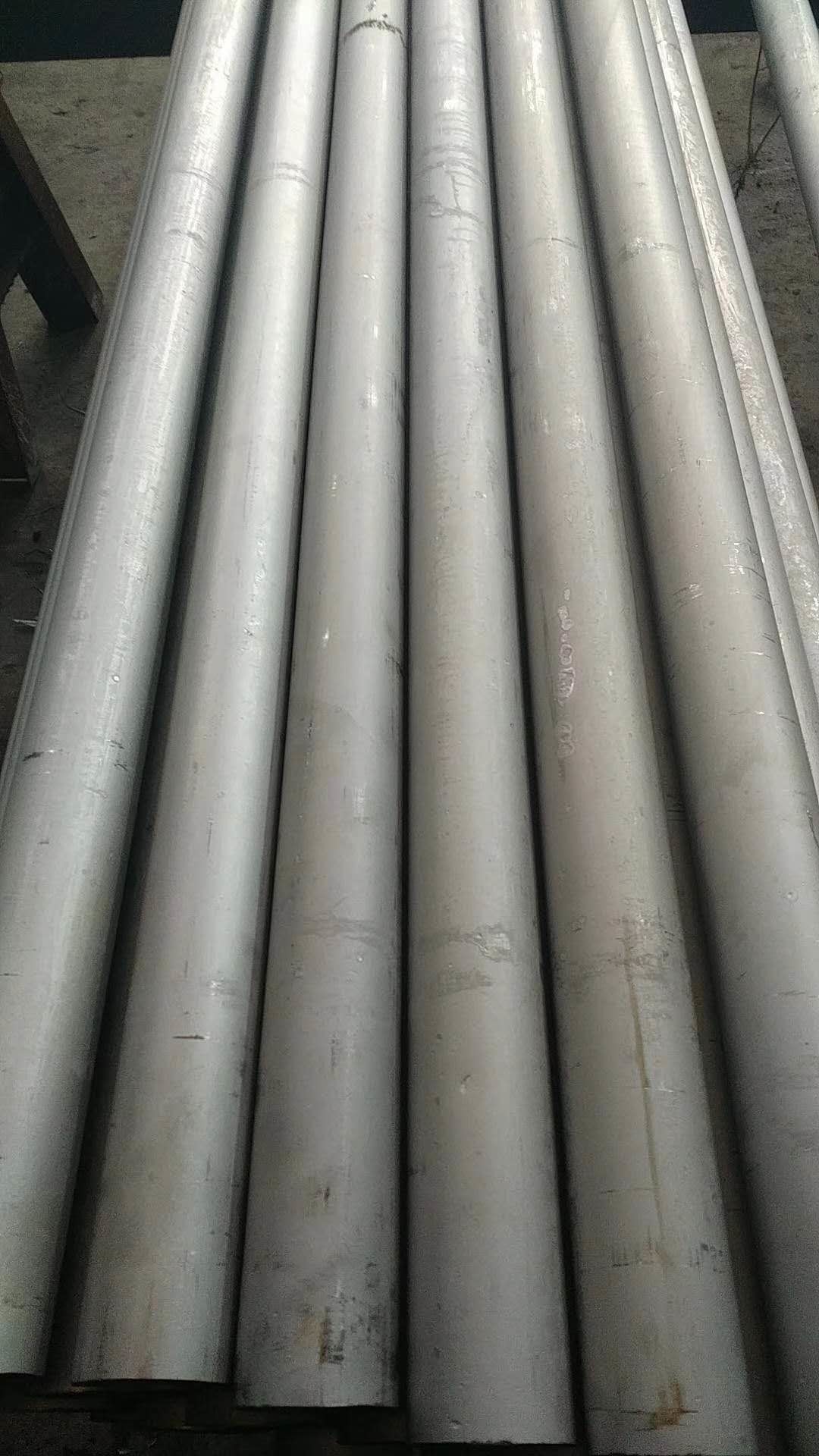

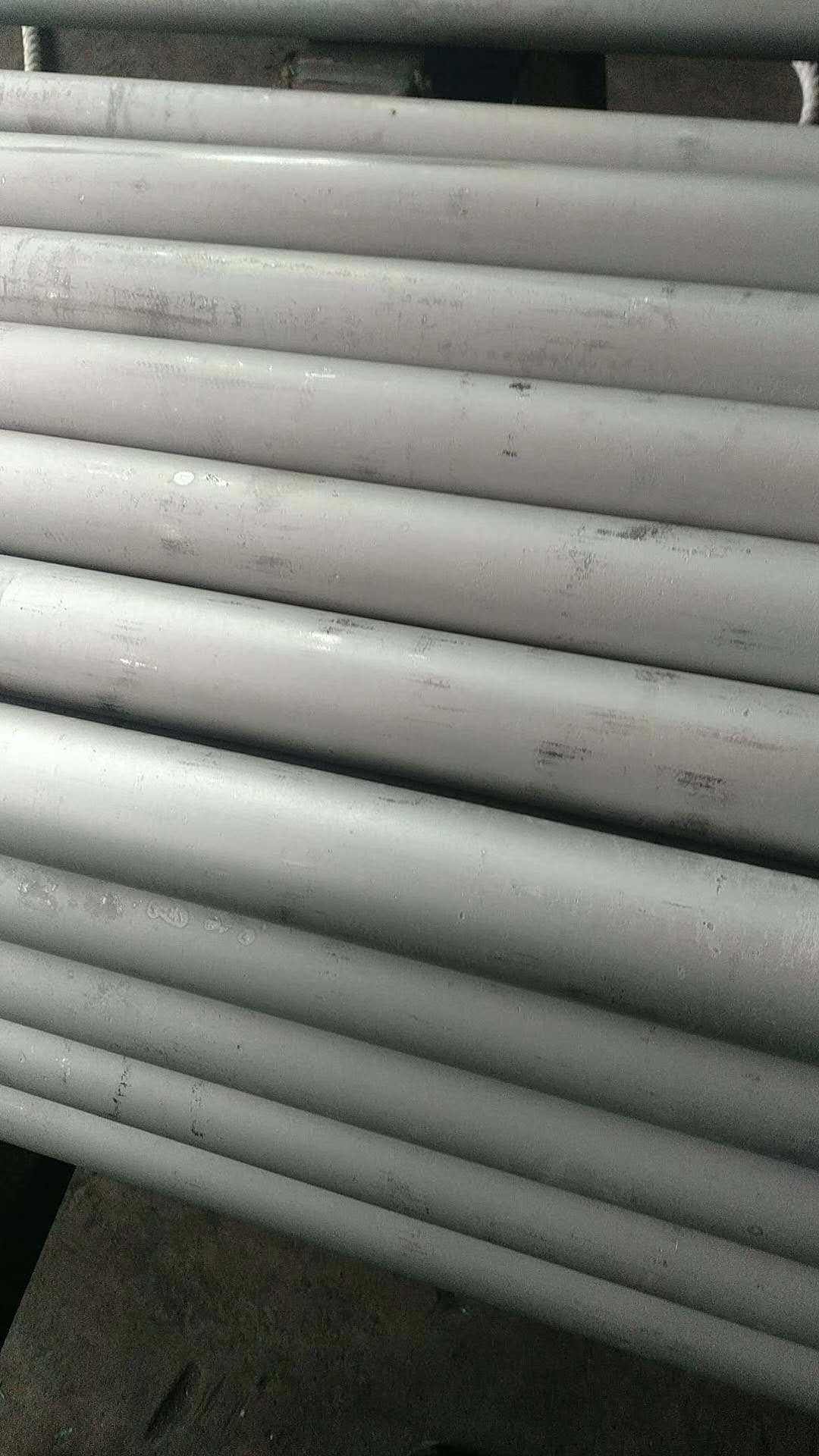

ASTM A790 Duplex Stainless Steel Tube UNS S32205 S31803 Seamless Tube Images
